The Modern
IEC 61131-3 Runtime.
A deterministic, hardware-agnostic PLC runtime built on Zephyr RTOS with a professional desktop IDE. Write your logic once, deploy it anywhere—from resource-constrained microcontrollers to POSIX-based bare-metal SoftPLCs.
Sub-millisecond Determinism
A highly optimized C99 core built to satisfy mission-critical constraints.
Memory Safety & State
Built with robust constraints in mind, featuring retentive memory handling for absolute state persistence between reboots.
Real-time Execution
Sub-millisecond jitter and a strict multitask deterministic scheduler powered entirely by Zephyr RTOS.
Portable Architecture
A lightweight core that interprets pre-compiled logic blocks and functions perfectly, entirely abstracting away the hardware layer.
SoftPLC Ready
Advanced POSIX native runtime support capabilities for cycle-accurate hardware simulation and frictionless deployment on servers.

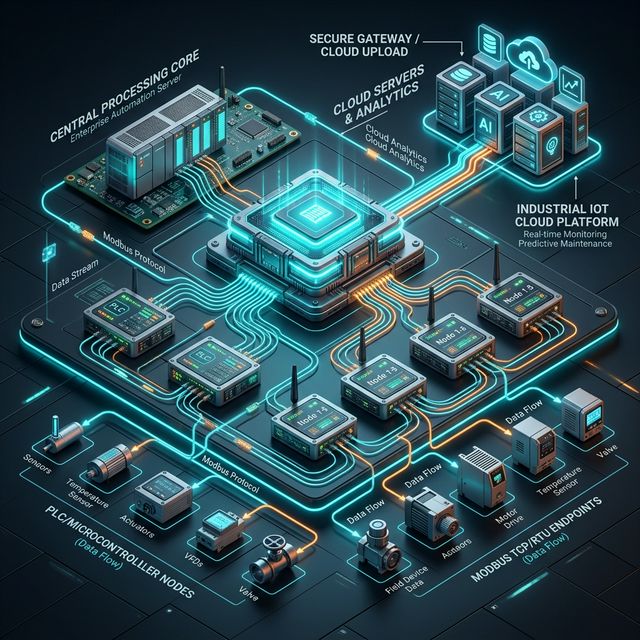

Connectivity & Communication
Bridge the gap between operational technology operations and the cloud natively.
Logic Execution
Standard IEC 61131-3 blocks dynamically govern the process image state.
Modbus TCP/RTU
Zero-overhead, high-performance Modbus servers actively exposed for SCADA and HMI integration.
MQTT Integration
Native MQTT telemetry fired directly from the core runtime to local or remote brokers.
Cloud Dashboarding
Achieve complete IT integration without ever relying on complex middleware layers.
Support & Extensibility
Deploy instantly to industrial-grade boards or effortlessly port the runtime to your own custom architecture utilizing the Zephyr device tree.
Out-of-the-box support: RP2040 • STM32H747 M7 • ESP32-S3 • STM32F746 • STM32H743ZI
Developer-First Tooling
We provide absolutely everything you need to engineer next-generation automation intelligently.
IEC 61131-3 Languages
Enjoy first-class support for industry standard languages designed to match your specific workflow needs.
Professional Workflow
- ✓Live variable watch tables
- ✓Cycle-accurate step execution
- ✓Hardware breakpoints support
- ✓Automated testing paths
IEC 61131-3 Languages
- ✓Ladder Logic (LD)
- ✓Function Block Diagrams (FBD)
- ✓Sequential Function Charts (SFC)
- ✓Structured Text (ST)
Built to Scale Natively
An uncompromising runtime architecture designed from the ground up for continuous improvement and integration.
C99 VM Interpreter
- ✓ Strict deterministic scheduler
- ✓ Retentive NVRAM handling
- ✓ Seamless Zephyr HAL integration
Visual Environments
- ✓ React Flow powered interface
- ✓ Fast TypeScript compiler
- ✓ POSIX native simulation
Standard Protocols
- ✓ Unified Modbus TCP/RTU
- ✓ Native IoT edge MQTT client
- ✓ Networking security layers

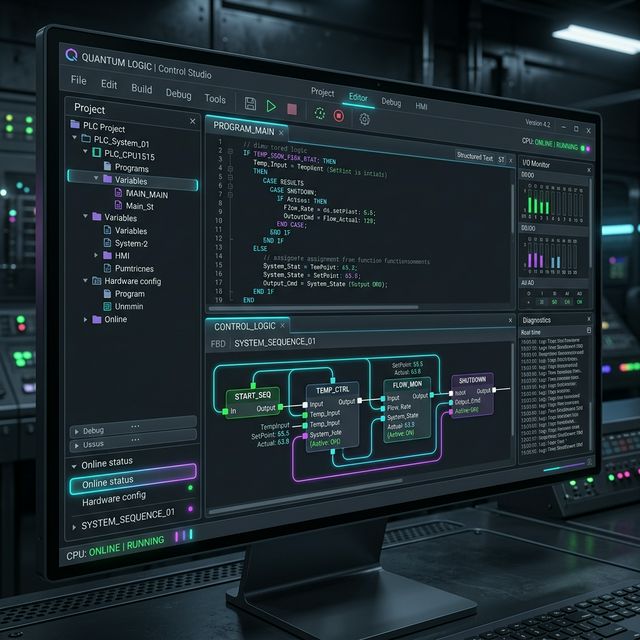

Professional Desktop Environment
Seamless visual authoring, compilation, and remote deployment delivered as a standalone app across Windows, macOS, and Linux.
Author
Visual and textual editors providing a modern, incredibly responsive development experience.
Simulate
Test logic safely using the integrated POSIX native runtime for a precise match of actual hardware behavior.
Compile
Translate your automation logic directly into highly optimized bytecode blocks instantly.
Diagnostics
Monitor the process image in real-time, inspect internal states, and override variables seamlessly.
PROGRAM Main VAR PumpEnabled : BOOL := FALSE; TankLevel : INT := 42; END_VAR IF TankLevel < 30 THEN PumpEnabled := TRUE; END_IF; END_PROGRAM
Start Building Automation
Join the next generation of industrial control systems powered by modern open standards.
